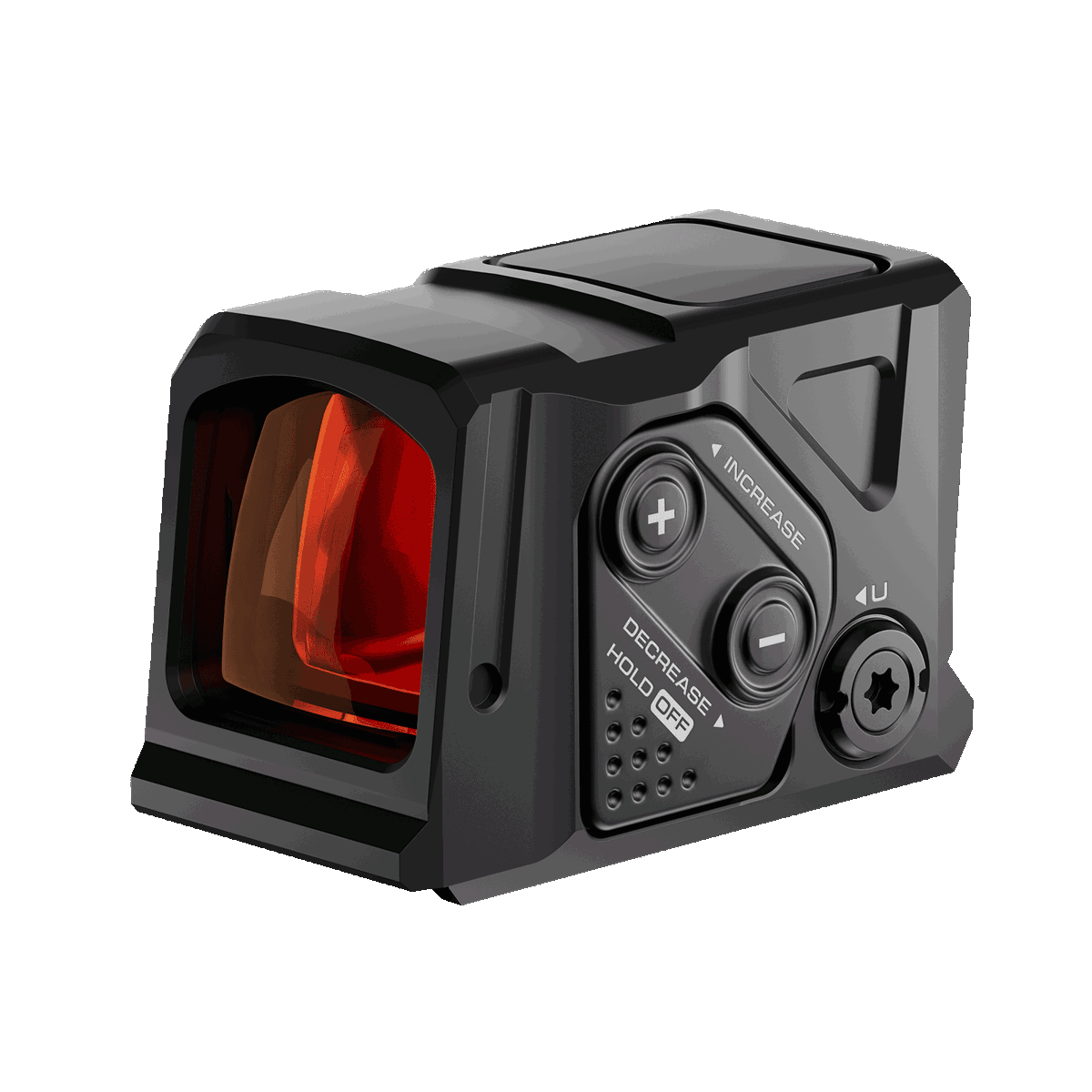

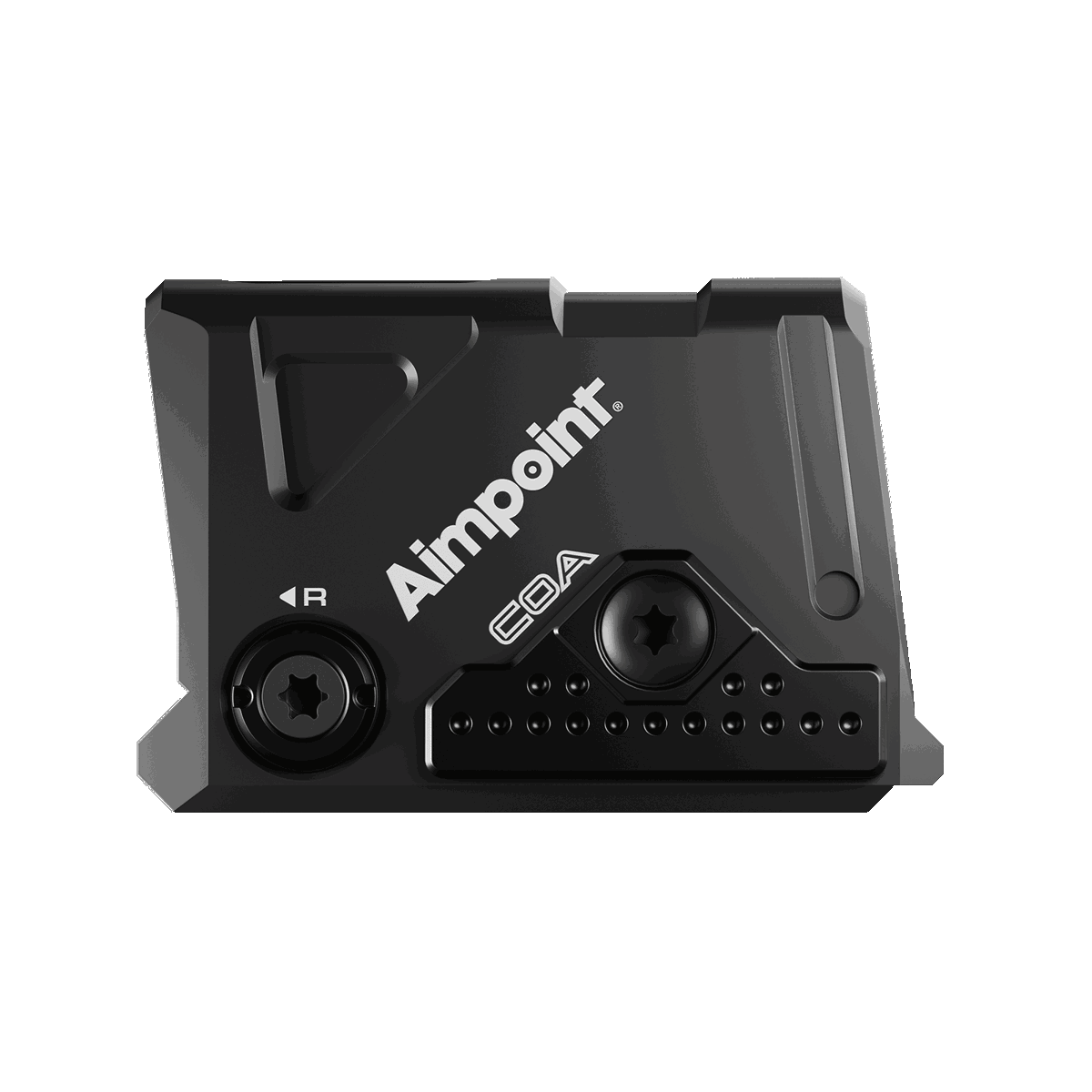

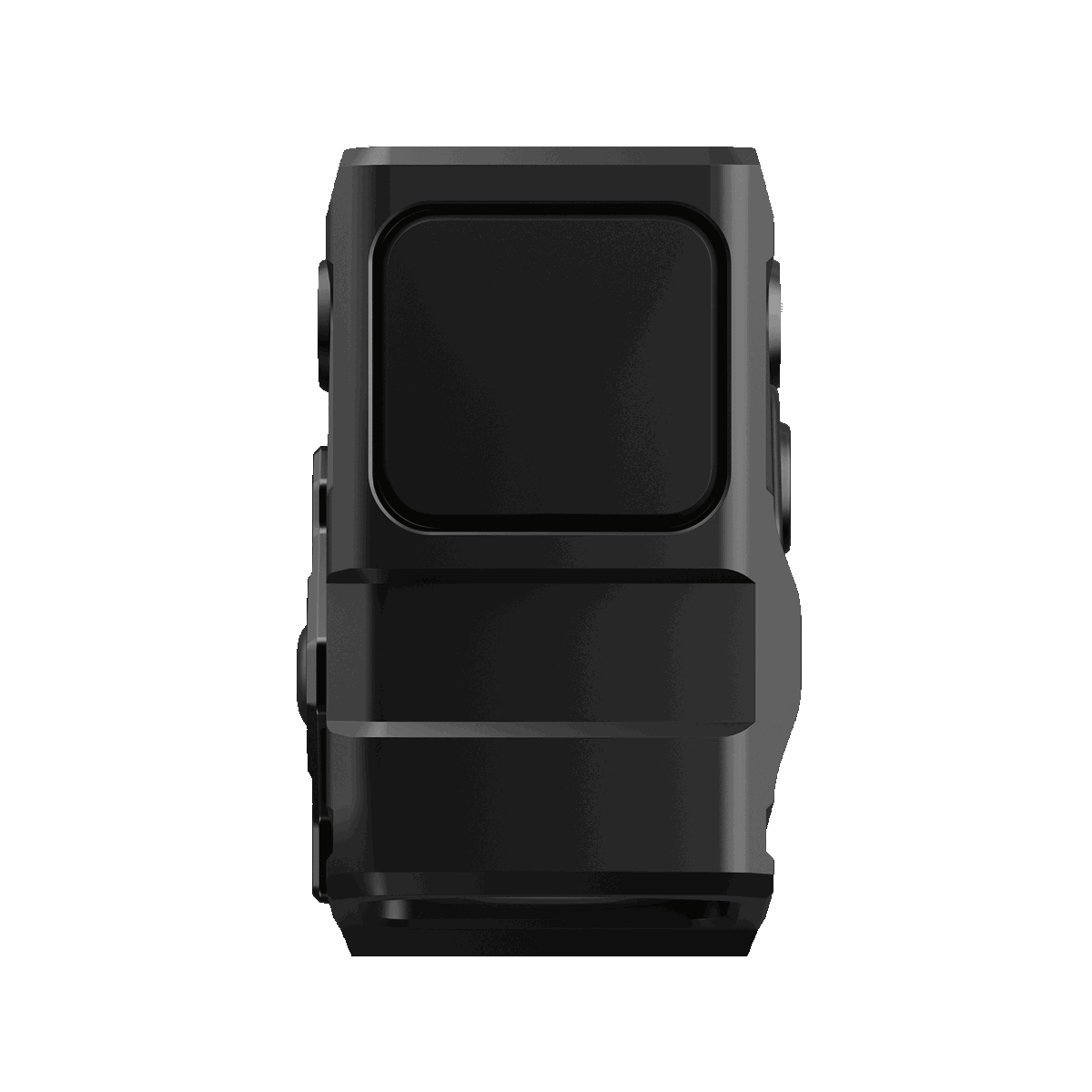

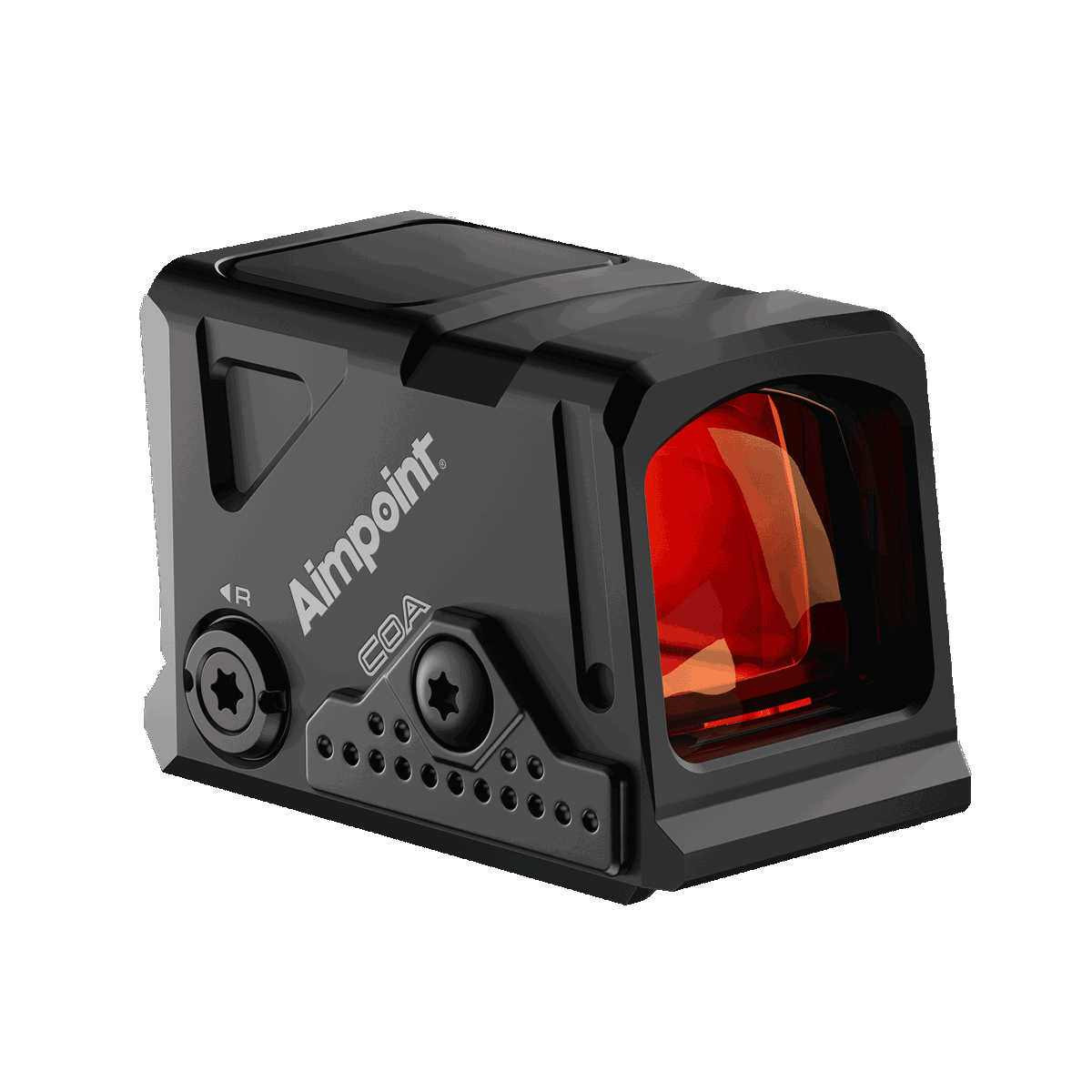

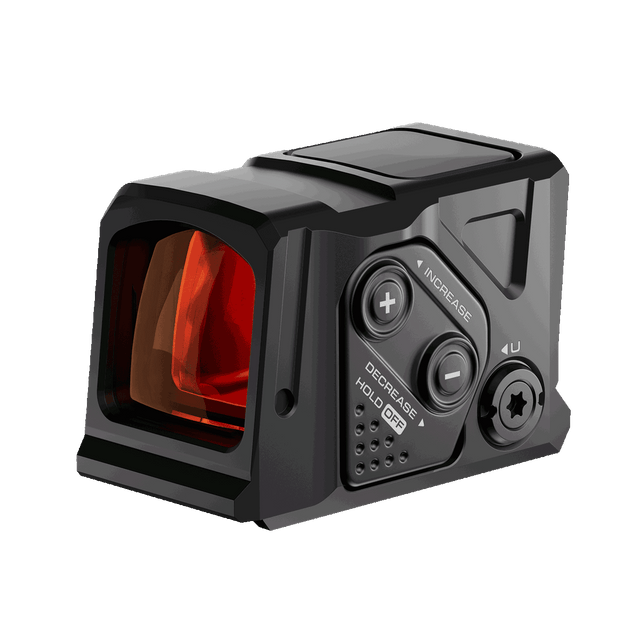

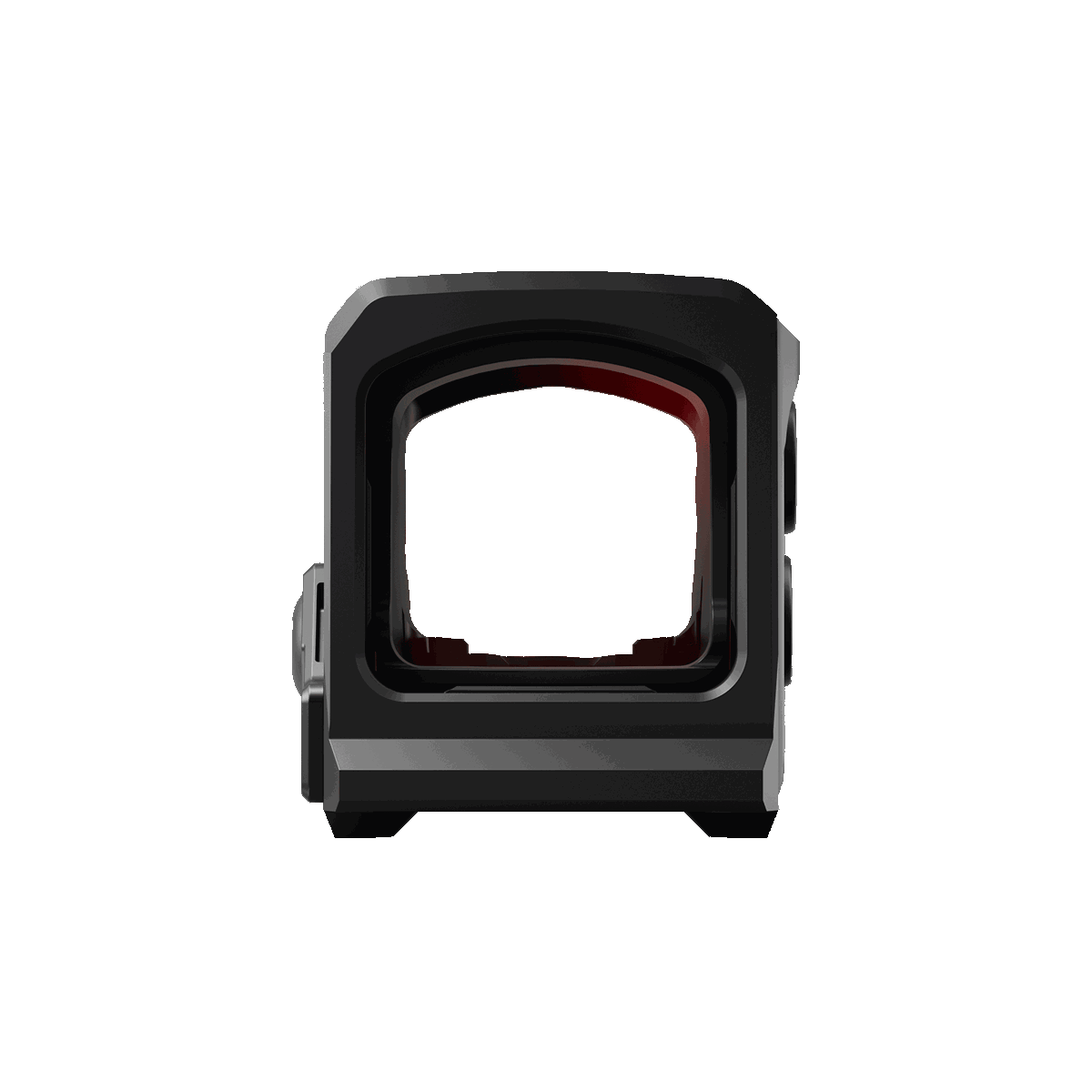

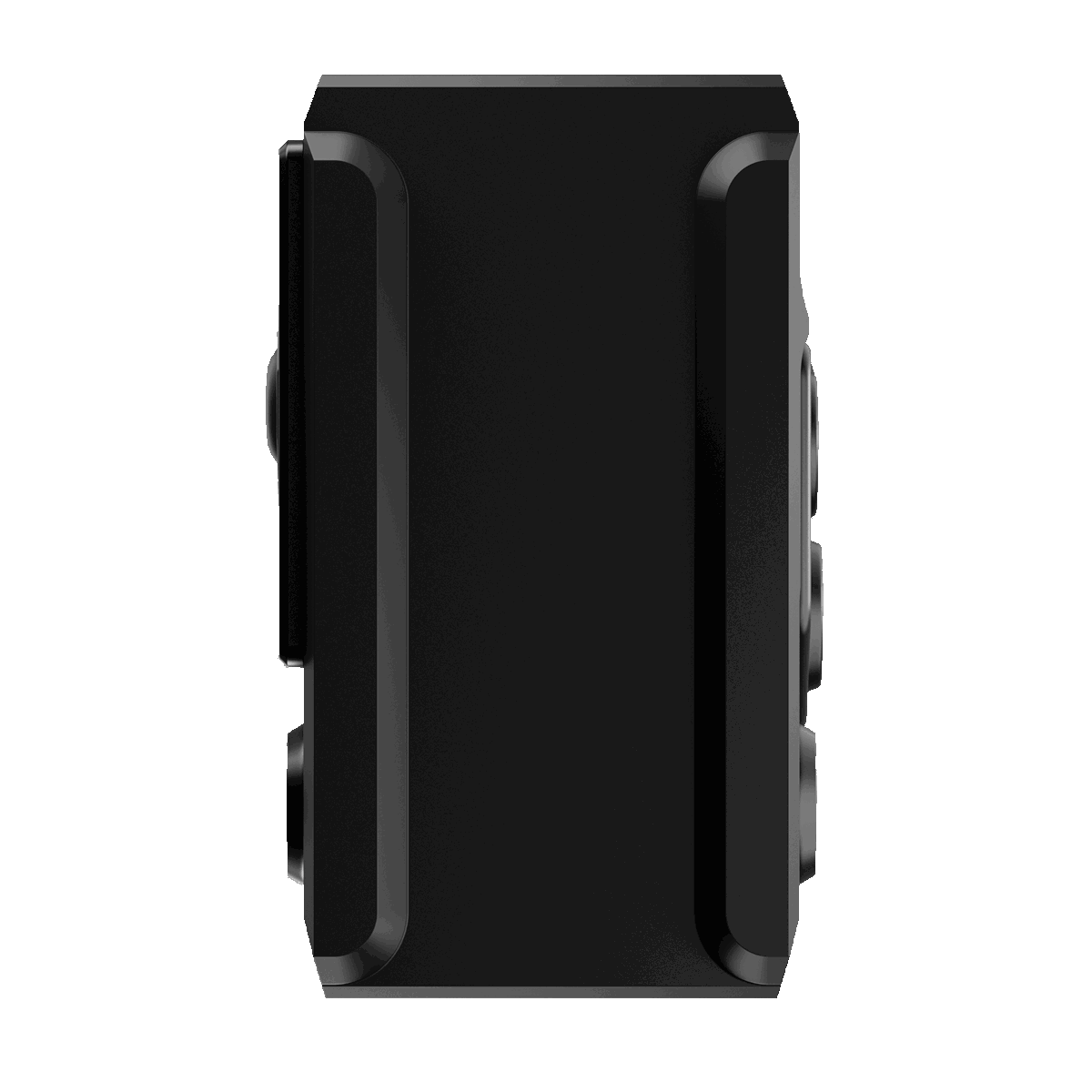

Aimpoint COA

The Aimpoint COA mounts via Aimpoint's A-CUT interface, a slide-integrated pattern machined directly into the slide with no screws through the optic housing.

It projects a 3.5 MOA red dot with unlimited eye relief for fast, both-eyes-open target acquisition, and is built to withstand the recoil of 40,000 rounds of 9mm testing.

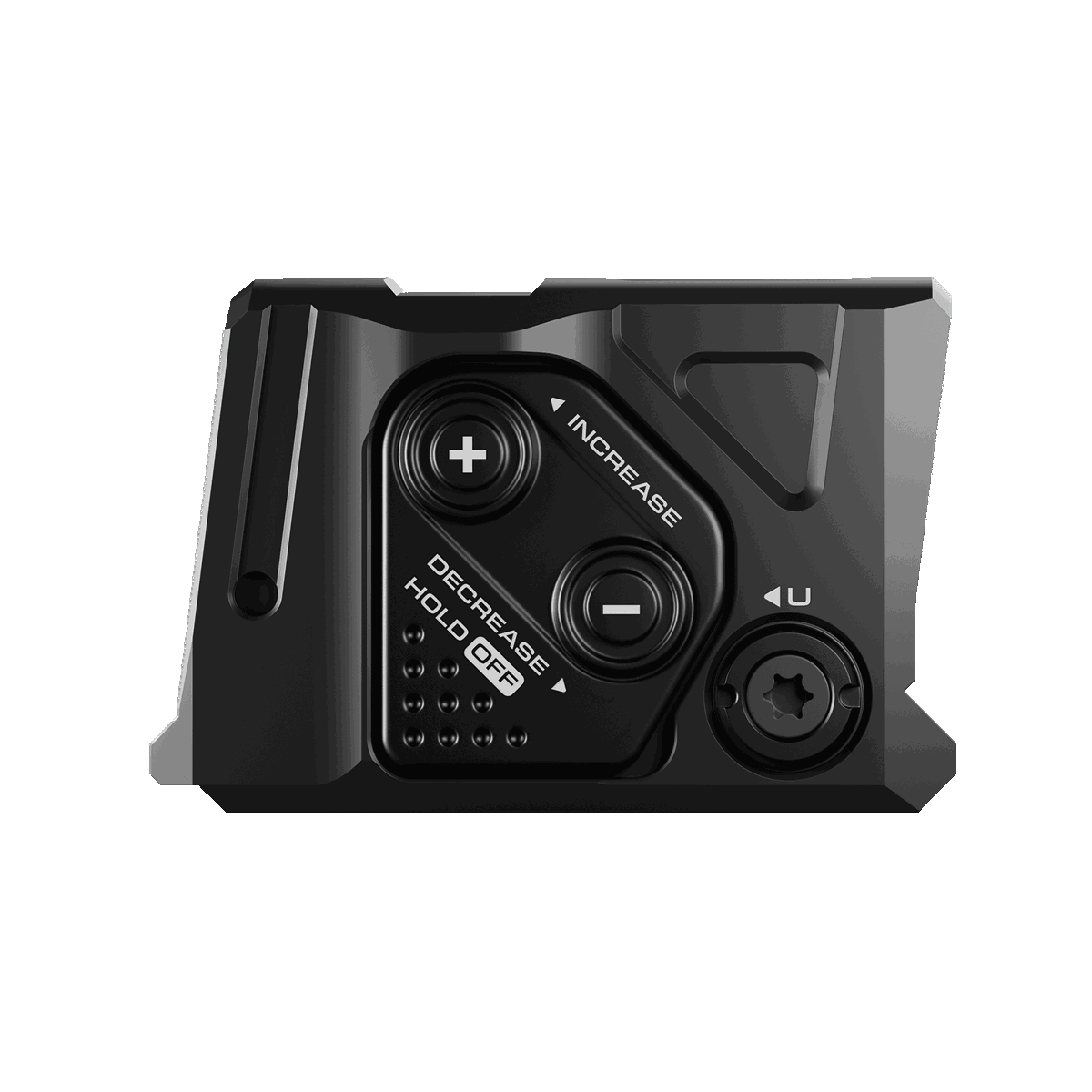

A single CR2032 battery powers the sight for up to 50,000 hours, with 12 brightness settings — 4 night-vision-compatible and 8 daylight-visible — adjustable without removing the optic from the slide.

Key specifications

• Mounting interface – Aimpoint A-CUT
• Reticle – 3.5 MOA dot
• Dimensions – 45 x 28 x 30 mm
• Weight – 48 g
• Window size – 15 x 15 mm
• Battery – CR2032, up to 50,000 hours
• Water resistance – submersible to 25 m

Features

• Unlimited eye relief
• 12 brightness settings (4 NVD-compatible + 8 daylight)
• Co-witness capable with suitable iron sights
• Tested to 40,000 rounds of 9mm recoil
• No screws through the optic housing
